SPECIFICATION
|
|
Line pull:1,814kgs/4,000lbs
|
|
Motor: 12V/1.6HP 24V/1.0HP
|
|
Gear Train: Three stage
|
|
Gear Ratio: 187:1
|
|
Freespooling Clutch: Rotating ring gear
|
|
Wire Rope Size: Φ7/32"x50'(Φ5.5mmx15m)
|
|
Wire Rope Type: Aircraft A7X19
|
|
Drum Size: Φ2.3"x5.2"(Φ59mmx131.5mm)
|
|
|
LINE PULL
|
|
Layer of Wire Rope
|
Max Line Pull
|
|
1
|
4,000lbs/1,814kgs
|
|
2
|
3,735lbs/1,694kgs
|
|
3
|
3,188lbs/1,446kgs
|
|
4
|
2,780lbs/1,261kgs
|
|
|
LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
|
|
Load
|
Line Speed
|
AMP Draw(12V)
|
AMP Draw(24V)
|
|
No Load
|
24FPM/7.3MPM
|
55
|
49
|
|
500lbs/230kgs
|
6.6FPM/2.0MPM
|
210
|
172
|
|
1,000lbs/450kgs
|
4.0FPM/1.2MPM
|
290
|
260
|
|
1,500lbs/680kgs
|
2.6FPM/0.8MPM
|
350
|
310
|
|
2,000lbs/900kgs
|
2.6FPM/0.8MPM
|
350
|
310
|
|
|
|
|

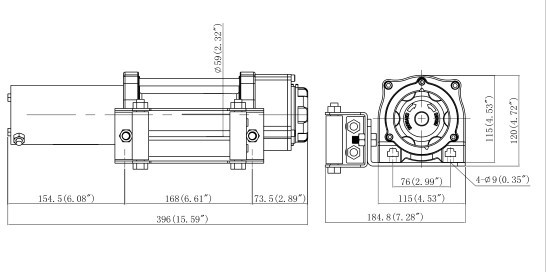

DIMENSIONS(mm)
|
|
|
|
|
|
|
|
STANDARD ACCESSORIES
|
|
Controller TA-0508
|
|
4 Way Roller Fairlead TA-0905
|
|
Control unit TA-0512
|
|
Mounting hardware
|
|
Handsaver Strap
|
|
Wire Rope With Hook
|
|
Base Frame TA-0304
|
|
|
|
|
|
PACKAGE
|
|
Winch Weight : 14.98kgs/33lbs
|
|
Gross Weight : 16.97kgs/37.3lbs
|
|
Box Dimension : 430×225×257 mm(16.9"×8.9"×10.1")
|
